兼容性下降
•易于定制以实现定制自动化集成
•电子间距选择
•平滑的磁带索引
•可逆的磁带索引驱动器
•深度更深的口袋
•可编程的自定义拾取点
•板载自我诊断和维护工具

QF Series Tape Feeders for OEM & Automation

• Drop in compatibility
• Easily customized for custom automation integrations
• Electronic pitch selection
• Smooth tape index
• Reversible tape index drive
• Deeper pocket depth
• Programmable custom pick-point
• On-board self-diagnostics and maintenance tools

富士QF系列兼容磁带式供料器采用轻巧的人体工学设计，可确保可靠的操作。它们需要非常低的维护，同时可以容纳高达120 mm的胶带宽度以及较深的口袋部件。Hover-Davis QF系列给料机随附有用的诊断和维护工具。

QF系列给料机提供多功能的电子多螺距操作。通过选择器按钮选择音高意味着单个进纸器可用于多种组件音高类型。结果是与传统的固定螺距喂料器相比，所需的喂料器库存更少。

其平稳的，电机驱动的进纸器进给采用电子控制。这导致更少的组件错误。QF系列还提供可逆的磁带索引驱动器-可以通过按钮轻松控制。装载或卸载时必不可少的此功能可以大大减少组件损失。

提供两种标准的卷盘尺寸：15“或18”。最大口袋深度在4毫米至22毫米之间，具体取决于磁带宽度（8毫米至120毫米）。这消除了对自定义进纸器的需求。

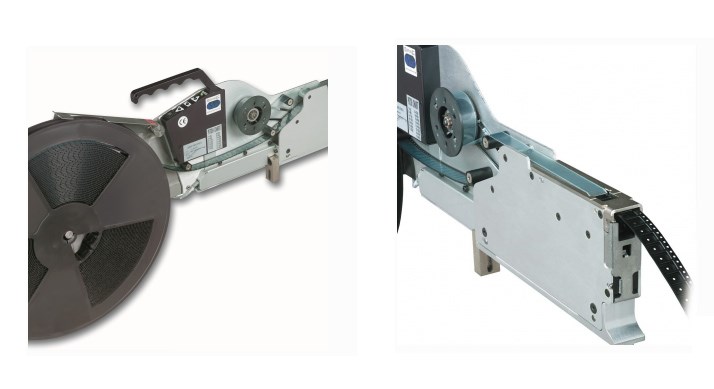

QF Series, Fuji Compatible tape feeders are designed for reliable operation in a light-weight, ergonomic design. They require very low maintenance while accommodating tape widths up to 120 mm as well as deep pocket components. Hover-Davis QF Series feeders come with useful diagnostic and maintenance tools.

QF Series feeders offer versatile electronic multipitch operation. Pitch selection via a selector button means that a single feeder can be used for several component pitch types. The result is that less feeder inventory is required compared to traditional fixed pitch feeders.

Their smooth, motor-driven feeder advance is electronically controlled. This leads to fewer component mispicks. QF Series also offers a reversible tape index drive – easily controlled via push button. Indispensable when loading or unloading, this feature can dramatically reduce component loss.

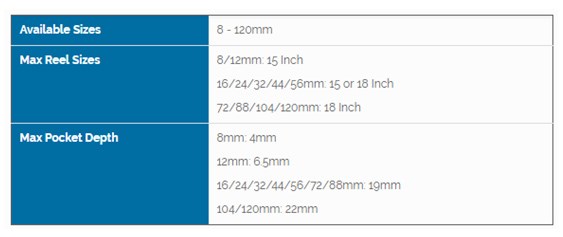

Two standard reel sizes are available, 15″ or 18″. Maximum pocket depth is between 4 mm and 22 mm, depending on tape width (8 mm up to 120 mm). This eliminates the need for custom feeders.
